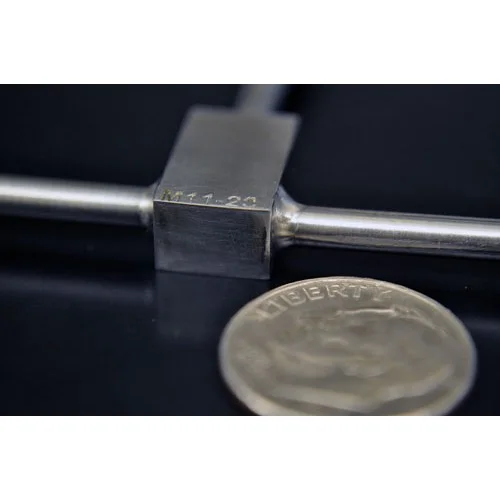

M11-20 Micromixer

1,500.00

The M11-20 micromixer provides excellent mixing at outlet flow rates as low as 5 ml/min and over 40 ml/min at a modest pressure drop.

Quantity:
Add To Cart

Additional Info

The M11-20 micromixer provides excellent mixing at outlet flow rates as low as 5 ml/min and over 40 ml/min at a modest pressure drop.

Specification
Flow configuration Two inlets of equal flow, one outlet
Throughput 20ml/min at 5 psi driving pressure (1 cP fluid)
Outside dimensions (not including tubing) 9mm (w) x 15mm (l) x 6mm (h)
Internal volume (not including tubing) 9.27µl
Residence time at 5ml/min 1.85 ms
Body material 316L
Tubing 316SS, 1/8” OD, 0.055” ID, 0.035” wall thickness
Thermocouple port Sized for 1/32” OD thermocouple
M11-20 Throughput
 Absorbance data is from the Villermaux-Dushman iodide/iodate competitive reaction and correlates to the efficiency of the mixing. Lower values indicate better mixing. Values below 0.1 indicate excellent mixing.

Absorbance data is from the Villermaux-Dushman iodide/iodate competitive reaction and correlates to the efficiency of the mixing. Lower values indicate better mixing. Values below 0.1 indicate excellent mixing.
